Confidential UK Transmission Operator — 275kV Grid Substation, UK
275kV Disconnector Earth Switch Installation and Commissioning
Northern HV installed and commissioned a 275kV disconnector earth switch at a live UK transmission substation. Delivered within the planned outage window with zero lost time incidents.
Client
Confidential UK Transmission Operator
Location
275kV Grid Substation, UK
Contractor
Northern HV Ltd
Project Overview

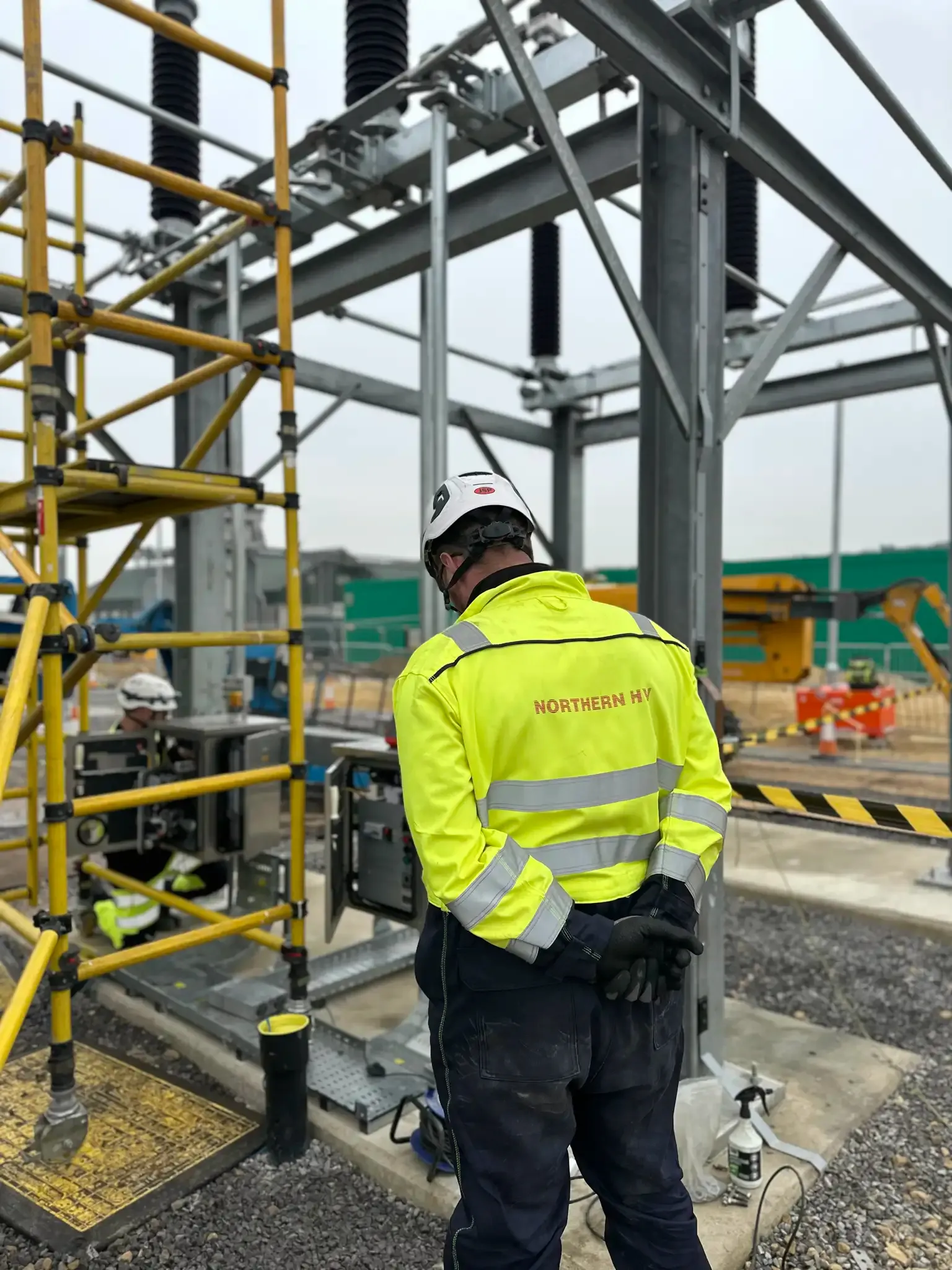

Northern HV delivered the full installation and commissioning of a 275kV disconnector earth switch at an operational UK transmission substation. The project formed part of a wider asset replacement and network reinforcement programme designed to improve safety, extend asset life, and boost system reliability.
The scope covered mechanical and electrical installation, integration into existing protection and control schemes, functional testing, and final commissioning — all to National Grid Technical Specifications and BS EN standards.
This wasn't a greenfield job. The entire project took place within a live 275kV compound, requiring tight outage windows, strict safety controls, and close coordination with the client's planning team.
Scope of Works
- Removal of existing earth switch assembly

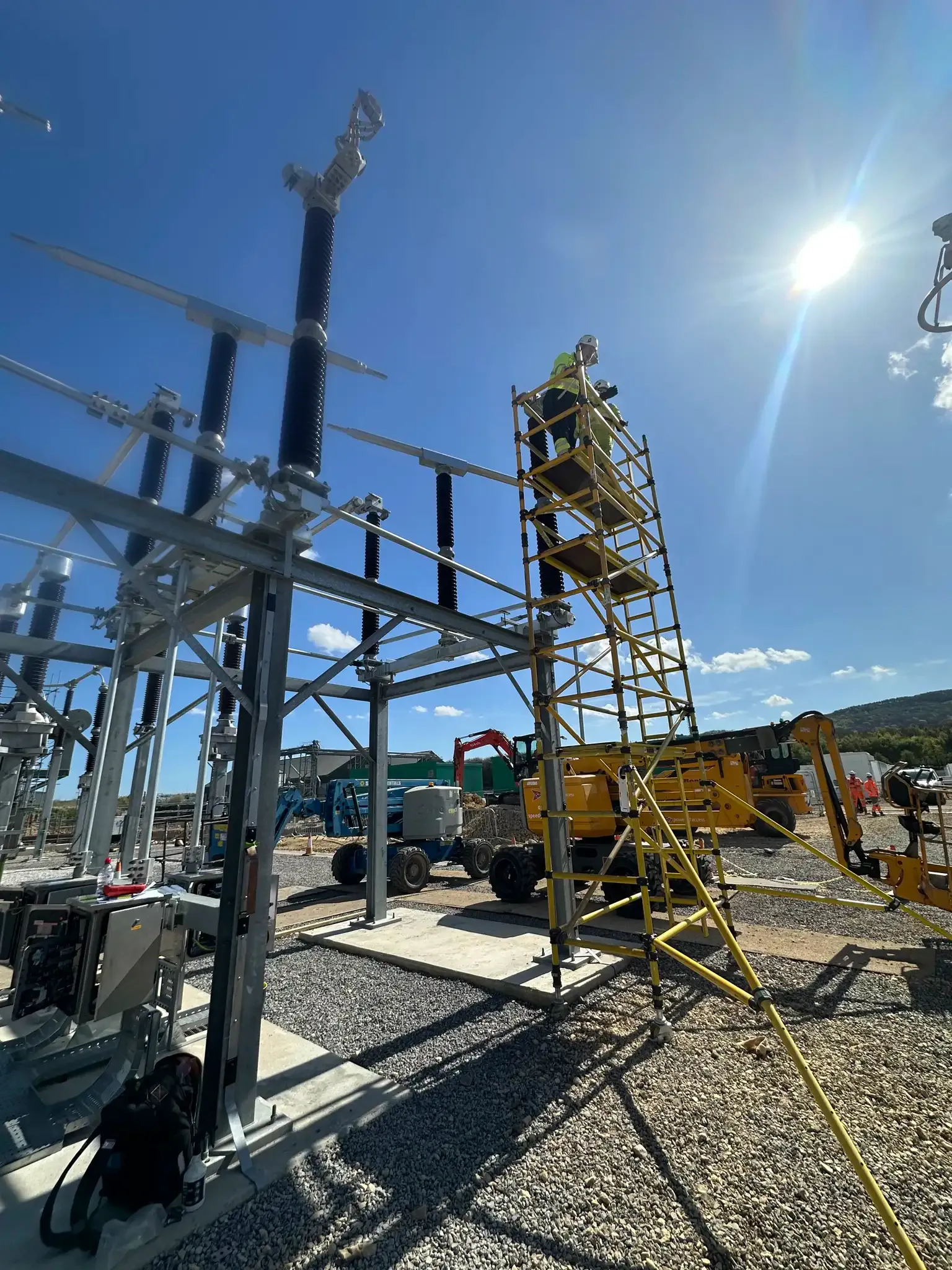

- Installation and alignment of new 275kV disconnector earth switch
- Structural steelwork alignment and torque verification
- HV terminal connections and corona shielding installation
- Motor drive mechanism installation and configuration

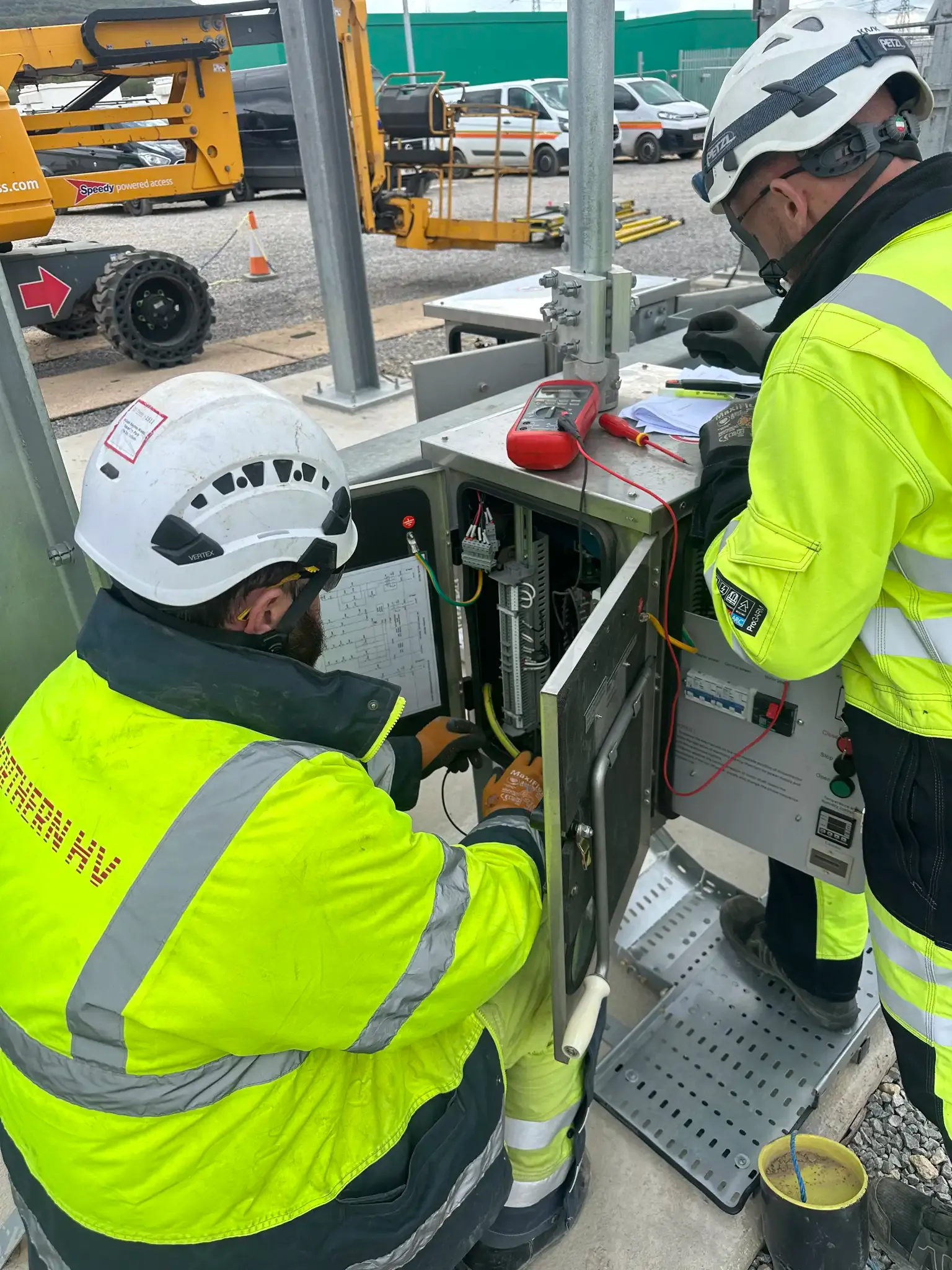

- Control cabling, glanding, and termination
- Auxiliary wiring and marshalling kiosk modifications
- Interlocking integration with existing 275kV GIS/AIS bay
- Mechanical and electrical functional testing
- Pre-commissioning and client witness testing
- Production of as-built documentation and test certification
Technical Challenges
Live Substation Environment
The works were completed within an operational 275kV compound. This required detailed outage coordination, Safe System of Work planning, and implementation of exclusion zones with controlled access throughout. Our team worked closely with the client's outage planning team to minimise downtime and maintain network resilience.
Precision Mechanical Alignment
Correct alignment of the disconnector blades and earth switch contacts was critical to ensure correct contact pressure, a low-resistance path to earth, and reliable long-term operation. We used laser alignment tools and calibrated torque equipment to achieve manufacturer tolerances.
Protection & Interlocking Integration
The new earth switch required seamless integration into existing electrical interlocking schemes, SCADA control systems, and protection signalling circuits. Our engineers validated all interlocking logic through simulation and functional proving before energisation.
Safety Performance
We completed this project with zero lost time incidents. Daily briefings, task-specific risk assessments, and Permit to Work control under client supervision were standard throughout.
All work complied with CDM Regulations and HV safety rules. In a live transmission environment, there's no room for shortcuts.
Project Outcome
The 275kV disconnector earth switch was installed and commissioned within the planned outage window. The client now has modernised switching equipment with improved operational safety, enhanced 275kV bay reliability, and seamless integration into their existing protection and SCADA systems.
Delivered on time, within budget, and to the client's satisfaction.
Client Feedback
Northern HV demonstrated strong technical competence and professionalism throughout the installation and commissioning process. The project was delivered safely and efficiently within a challenging live environment.
